Welcome

This short guide will help you understand the construction process and what activities you can expect to see during construction once all permits are approved.
Pre-Construction

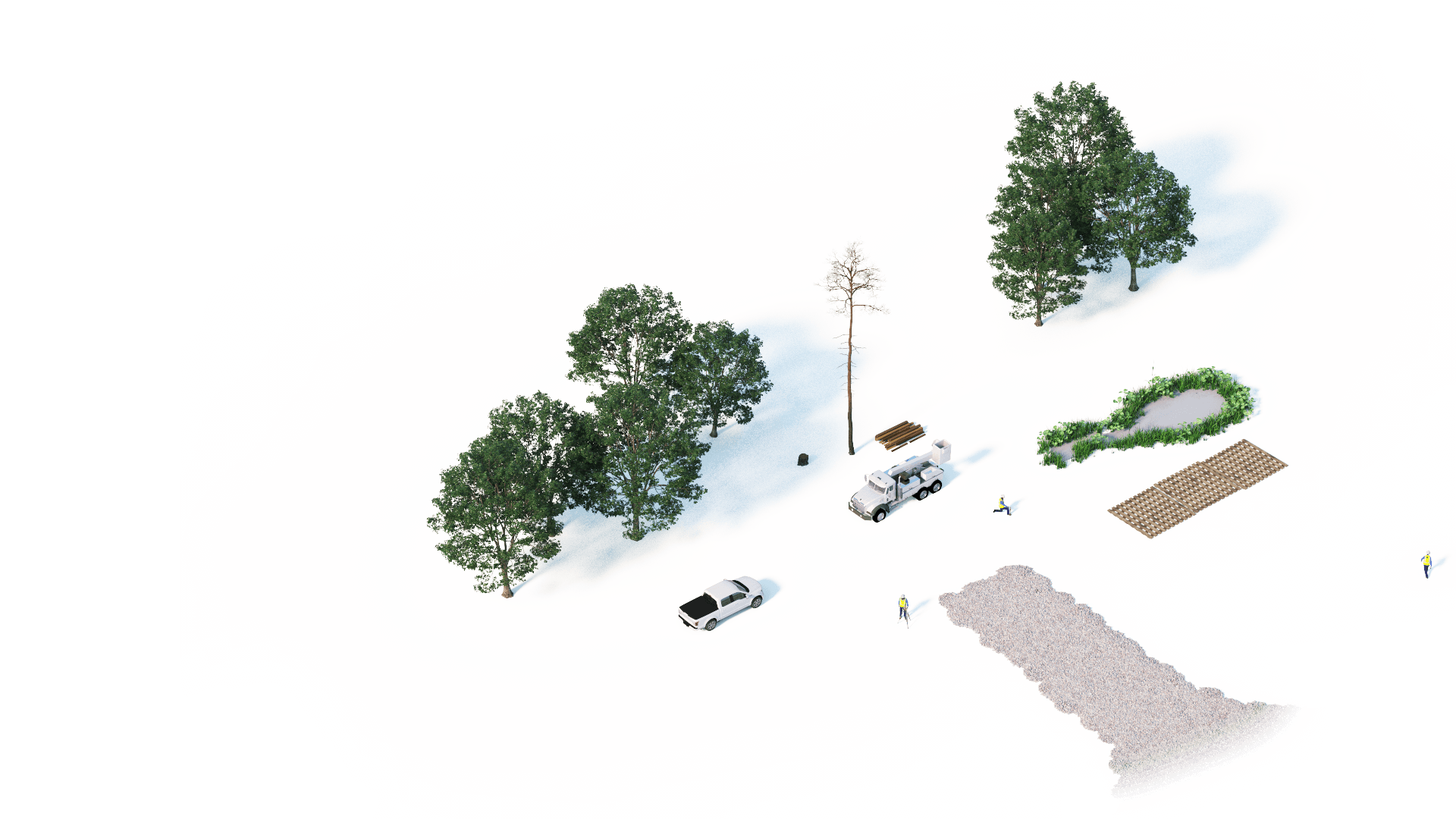

Pre-Construction

Click a hotspot to view pre-construction information.

Survey

Survey
Survey

Survey

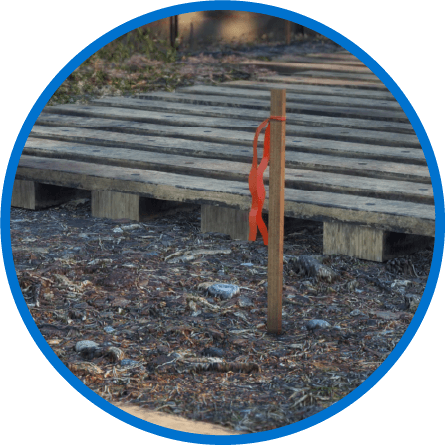

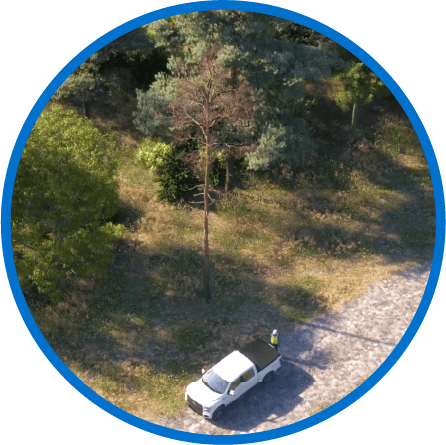

Construction crews begin by staking the center and outer edges of the right of way, road crossings, and pole locations.

Soil Testing

Survey
Survey

Soil Testing

Soil testing includes drilling holes in the ground to determine the soil make-up so structure foundations can be adequately designed. The holes are refilled after the testing is complete.

Right-of-Way Clearing

Survey
Survey

Right-of-Way Clearing

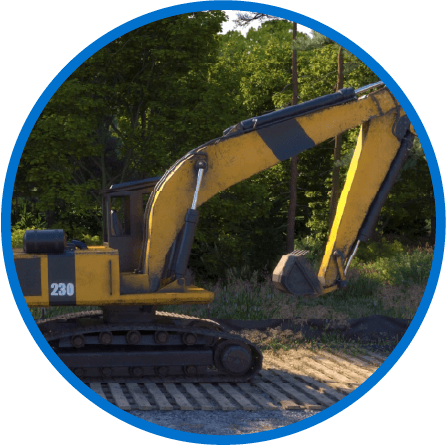

The right of way needs to be cleared of structures and certain types of vegetation. Trees along the right of way that could possibly fall and contact the transmission line are referred to as “danger trees” and will be trimmed and/or cut. Landowners will be notified prior to any activity.

Access Roads

Survey
Survey

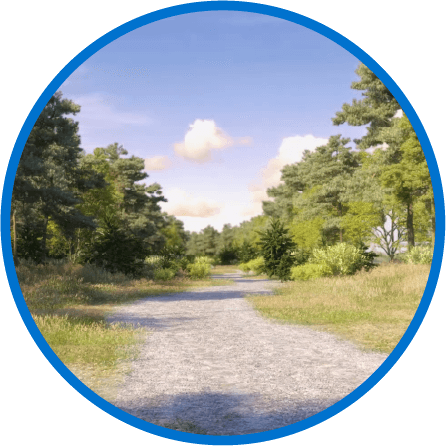

Access Roads

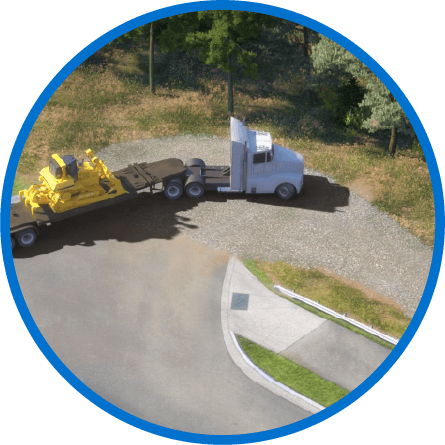

Dominion Energy will use existing access roads, where possible. If access is not available, additional access roads may be installed. Dominion Energy will coordinate with property owners regarding the location of convenient access points.

Wetland Areas

Survey
Survey

Wetland Areas

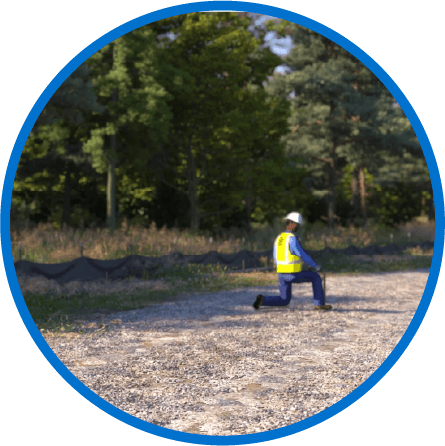

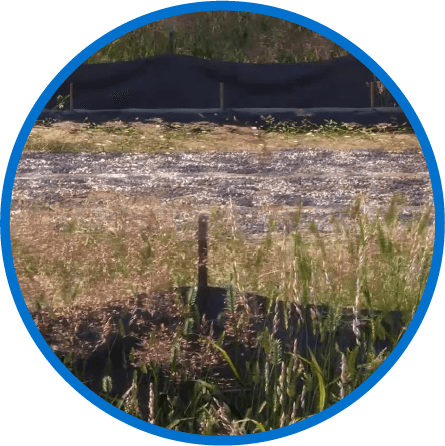

Special care is taken to keep impacts to wetlands to an absolute minimum during construction. To mitigate impacts to biological resources in the right of way, Dominion Energy may install erosion control devices, such as silt fences. Temporary wooden construction mats may be used in wetlands and other environmentally sensitive areas to mitigate impacts from equipment and other construction activities.
Pre-Construction

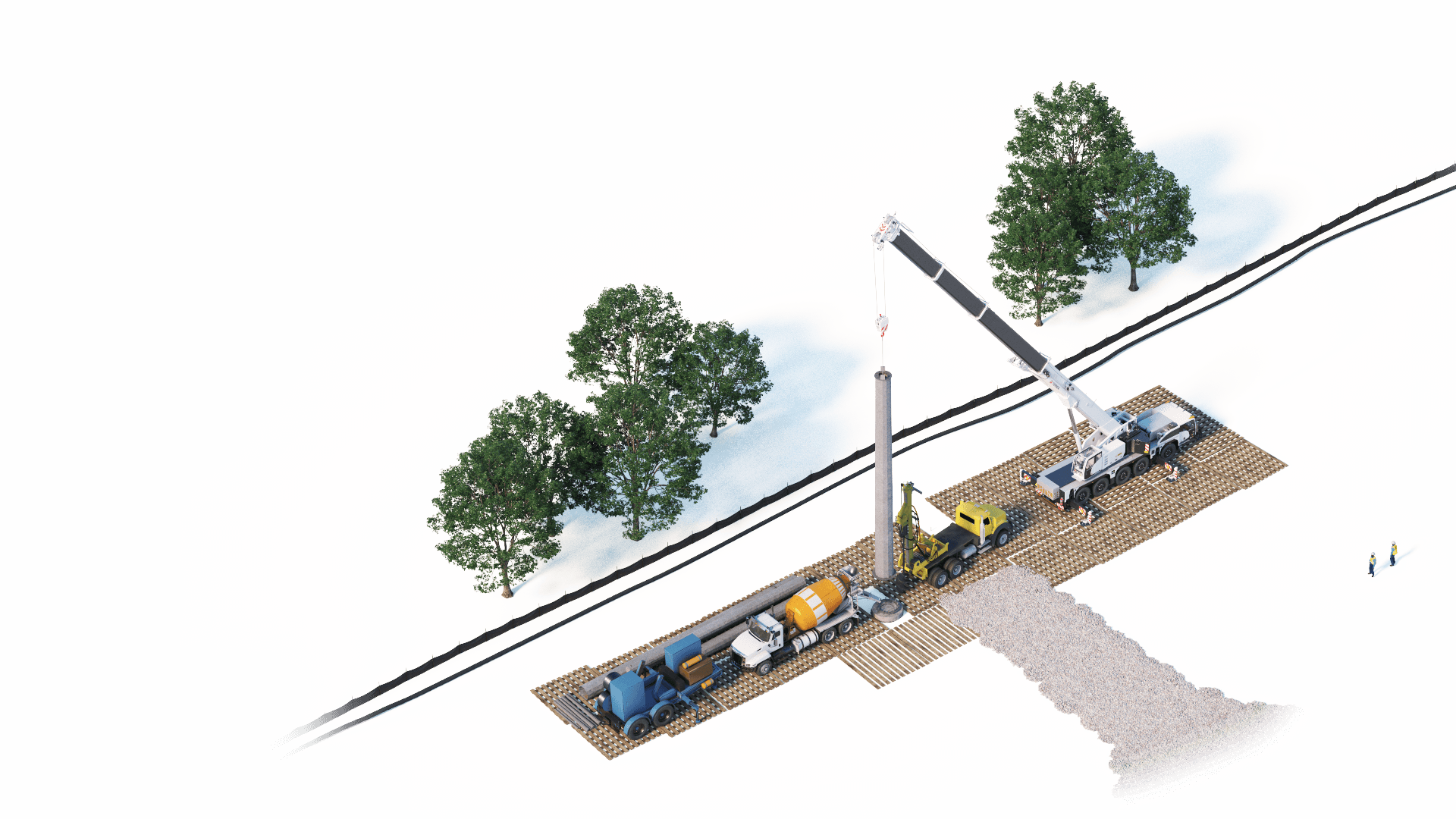

Construction

Click a hotspot to view construction information.

Foundation Installation

Survey
Survey

Foundation Installation

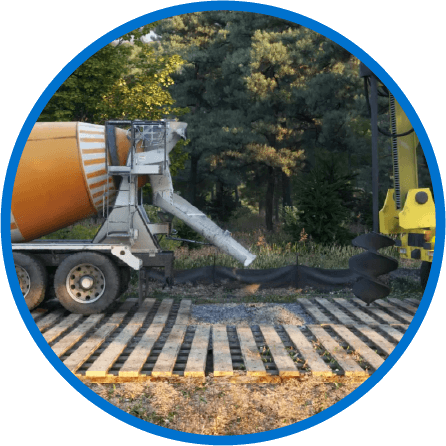

Most structures have a concrete foundation. The size and type of each foundation depends on the type of structure, soil make-up and the terrain.

Structure Construction

Survey
Survey

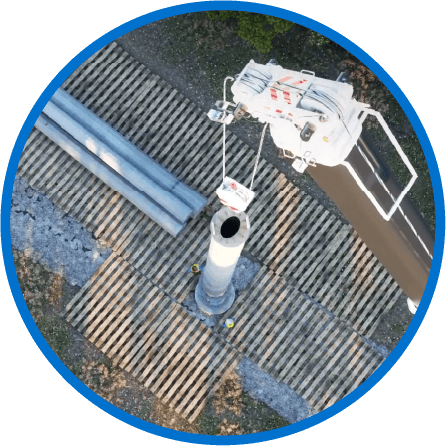

Structure Construction

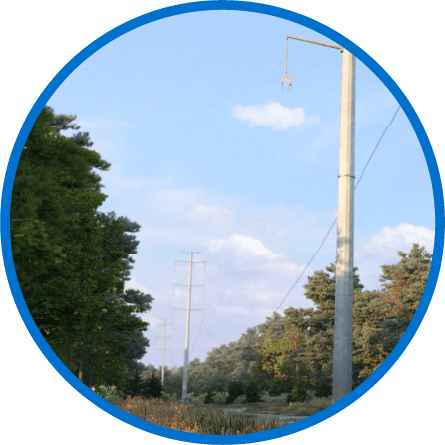

Once foundations are in place, structures are generally built from the ground up. Structures are assembled in sections and a crane or helicopter (although rare) may be used to lift the sections into place.

Wire Stringing

Survey
Survey

Wire Stringing

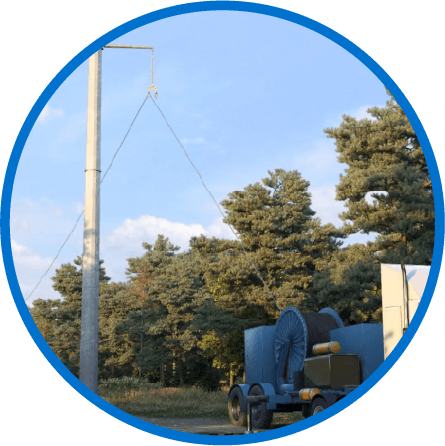

Wire stringing includes the installation of conductor(wires) and associated hardware for the length of the route. After installation, linemen inspect the newly installed conductor.

Noise

Survey
Survey

Noise

Dominion Energy will take measures to mitigate construction noise as much as possible. Work will take place during reasonable daytime hours and in accordance with state and local permits and allowances.
Pre-Construction

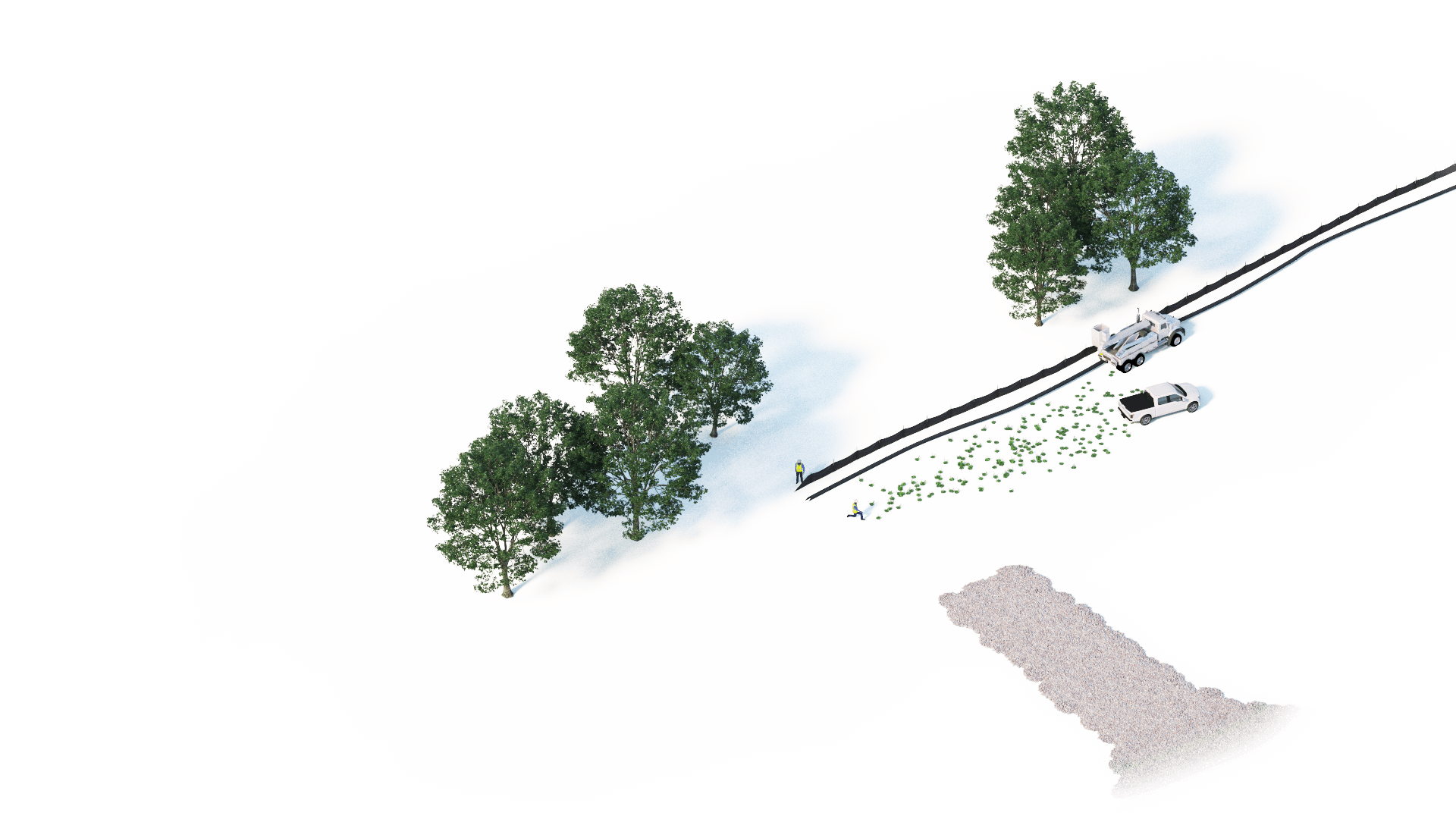

Post Construction

Click a hotspot to view post construction information.

Right-of-Way Restoration

Survey
Survey

Right-of-Way Restoration

After construction is complete, disturbed areas will be restored with native plantings. All construction materials and debris will be removed from the site.

Right-of-Way Access

Survey
Survey

Right-of-Way Access

Dominion Energy will restore roads and entrances to their original condition unless they are necessary for permanent access to the right of way.

Vegetation Management

Survey
Survey

Vegetation Management

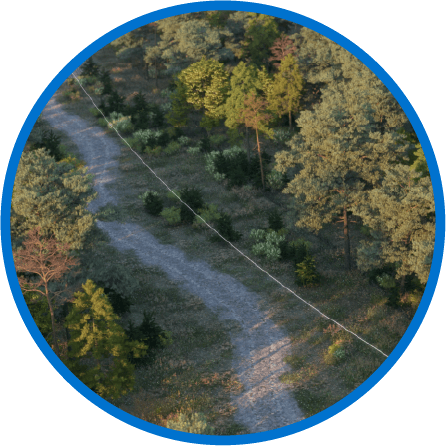

Vegetation growth will be monitored and maintained to assure continued service reliability of the transmission line. Trees that pose a hazard to the safe operation of the line may be trimmed or removed.
Pre-Construction

CONTACT US

Learn about our construction processes at powerlines101.dominionenergy.com.
Or contact us by calling 888-291-0190 or sending an email to powerline@dominionenergy.com.
